VM - Kabel

Anschluß Belegung der externen Geräte für die ///FAST Video Machine Boards im Detail...

Kabel VM SC Box > VM Board
Was tun, wenn man ein neues Verbindungskabel zwischen SC Box und dem VM Basis Board benötigt?

Sie brauchen dazu folgende Bauteile, zu beziehen bei RS Components www.rsonline.de...

Einige Leitungen verdrillen, die logisch zusammengehören.
Jeden Pin der Steckverbindung mit Einzelleitungen verbinden, außer die Audio und Video GND Pins.
Leitungen nicht crimpen, anlöten und 7mm Schrumpftülle verwenden!

Die Pinbelegung des Steckers finden sie weiter unten bei VM SC Box...

Bezeichnung	Menge	Länge	Art.-Nr.
HDP 62 pin - Stecker	1	---	270-9771
HDP 62 pin - Buchse	1	---	314-8004
Crimp Kontakte zum HDP Steckverbinder, gehören zum Steckverbinder Lieferumfang	124	---	---
Gehäusehauben für HDP Steckverbinder	2	---	450-9113
Koaxkabel RG179	25	x m	521-5409
PTFE Einzelleitung AWG26, eventuell verschiedene Farben	37	x m	526-7539
Schrumpftüllen ca. 7mm vom Schrumpfschlauch geschnitten	124	x m	---
Gewebeschlauch	1	x m	---

Control I/O (3M 10 pin) auf VM Mainboard
Signal Name - JPS	Pin	Signal Name JPS	Pin
Port 1 - Out - (TTL)	7	Port 1 - In - (TTL)	8
Port 2 - Out - (TTL)	5	Port 2 - In - (TTL)	6
Port 3 - Out - (TTL)	3	Port 3 - In - (TTL)	4
+5V	1	GND	10
+5V	9	GND	9

VMIO - RS232 - RS422 Kabel 9pin - 9pin
Signal Name - D-SUB 9p VMIO	Pin	Signal Name D-SUB 9p - VCR	Pin
NC	1
RX (RS232) - RX_N (RS422) (A)	2	TX_N (RS422) (A)	2
TX (RS232) - TX_P (RS422) (B)	3	RX_P (RS422) (B)	3
GND	4	GND	4
RX (RS232) - RX_P (RS422) (B)	7	TX_P (RS422) (B)	7
TX (RS232) - TX_N (RS422) (A)	8	RX_N (RS422) (A)	8
GND	9
Shield on Shell		Shield on Shell

SC - Box - RS422 Kabel 9pin - 9pin
Signal Name - D-SUB 9p SC Box	Pin	Signal Name D-SUB 9p - VCR	Pin
NC	1
RX_N (RS422) (A)	2	TX_N (RS422) (A)	2
TX_P (RS422) (B)	3	RX_P (RS422) (B)	3
GND	4	GND	4
RX_P (RS422) (B)	7	TX_P (RS422) (B)	7
TX_N (RS422) (A)	8	RX_N (RS422) (A)	8
GND	9
Shield on Shell		Shield on Shell

SC - Box - RS232 Kabel 25pin - 9pin
Signal Name - D-SUB 25p SC Box	Pin	Signal Name D-SUB 9p - VCR	Pin
NC	1
TX Data	2	RX Data	3
RX Data	3	RX_P (RS422) (B)	2
NC	4
NC	5
NC	6
GND	7	GND	5
		DTR	---
		DSR	7, 8
		RTS	6, 8
		CTS	6, 7
Shield on Shell		Shield on Shell

VM - SC Box
Signal Name	Pin	Signal Name	Pin	Signal Name	Pin
Audio In Channel 1- Left	1	Audio GND / Shield	22	Audio In Channel 1 - Right	43
Audio In Channel 2 - Left	2	Audio GND	23	Audio In Channel 2 - Right	44
Audio In Channel 3 - Left	3	Audio GND	24	Audio In Channel 3 - Right	45
Audio In Channel 4 - Left	4	Audio GND	25	Audio In Channel 4 - Right	46

Audio Monitor Out - Left	5	Audio GND	26	Audio Monitor Out - Right	47

IIC Data	6	+5V-PC	27	IIC - Clock	48
Key Out	7	+5V-PC	28	Digital GND	49

Ch. A UART-RX// Ctrl-L/S Data// SynEdit-Data	8	Digital-GND	29	Ch. B UART-RX// Ctrl-L/S Data// SynEdit-Data	50
Ch. A-UART-TX// SynEdit Clock	9	-12VPC	30	Ch. B-UART-TX//SynEdit Clock	51

Din	10	-12VPC	31	Clk	52
/Din	11	+12VPC	32	/Clk	53

Master-UART-RX// Ctrl-L/S Data/ SynEdit-Data	12	+12VPC	33	Dout	54
Master-UART-TX//SynEdit Clock	13	Digita-GND	34	/Dout	55

Master Out - CVBS	14	V-GND	35	Shield ANA-GND	56
Master Out - Y	15	V-GND	36	Master Out - C	57

Channel B - CVBS - IN6 V1/V2	16	V-GND	37	Reference In	58
Channel B2 - Y - IN4 V1/V2	17	V-GND	38	Channel B2 - C - IN4 V1/V2	59
Channel B1 - Y - IN2 V2	18	V-GND	39	Channel B1 - C - IN2 V2	60

Channel A2 - Y - IN3 V1/V2	19	V-GND	40	Channel A2 - C - IN3 V1/V2	61
Channel A1 - Y - IN1 V1	20	V-GND	41	Channel A1 - C - IN1 V1	62
Channel A - CVBS - IN5 V1/V2	21	V-GND	42

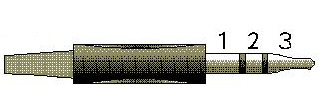

Edit Control Kabel
Signal Name - Klinke Stereo 3,5mm SC Box	Pin	Signal Name 5pin SUB DIN - VCR	Pin
Serial Clock (center ring)	2	Serial Clock	4
Serial Data (top)	3	Serial Data	2
GND	1	GND	3
		Serial Clock	1
		SYS +5V	5

Edit Control Kabel
Klinke Stereo 3,5mm SC Box	5pin SUB DIN - VCR

LanC Control Kabel
Signal Name - Klinke Stereo 3,5mm SC Box	Pin	Signal Name 5pin SUB DIN - VCR	Pin
Serial Data (top)	3	Serial Data	4
GND	1	GND	5
Serial Clock (center ring)	2	---
		optional	2
		DC Out	1
		Power SW	3

LanC Control Kabel
Klinke Stereo 3,5mm SC Box	5pin - VCR

VM DPR Audio Box
Signal Name - SUB-D 37pin	Pin	Signal Name - SUB-D 37pin	Pin
Audio Out 2(-)	1	Audio Out (+)	20
Audio Out 2 (+)	2	Audio Out (-)	21
Audio GND	3	Audio GND	22
Audio Out 3(-)	4	NC	23
Audio Out 3 (+)	5	Audio GND	24
Audio Out 4 (-)	6	Audio GND	25
Audio Out 4 (+)	7	Audio GND	26
NC	8	NC	27
NC	9	Headphone Out - Left	28
Headphone GND	10	Headphone Out - Right	29
NC	11	Audio GND	30
Power for LED (Ri=330 Ohm)	12	NC	31
GND	13	Audio In 3 (+)	32
Audio GND	14	Audio In 3 (-)	33
Audio In 1 (+)	15	Audio In 4 (+)	34
Audio GND	16	Audio GND	35
Audio In 1 (-)	17	Audio In 4 (-)	36
Audio In 2 (+)	18	Audio GND	37
Audio In 2 (-)	19
*Remarks:* (+) = hot - (-) = cold

VM YUV - Box
Signal Name - SUB-D 37pin	Pin	Signal Name - SUB-D 37pin	Pin
	1		20
	2		21
	3		22
	4		23
	5		24
	6		25
	7		26
	8		27
	9		28
	10		29
	11		30
	12		31
	13		32
	14		33
	15		34
	16		35
	17		36
	18		37
	19

* * *

Digtaler VM - Bus - Pinning

Nr.	Pin - Component Site VM - Main Board	Pin - SolderSite VM - Main Board
1	GND	GND
2	U90/ 33, YIN-7	U91/ 33, YIN-7, Bidirectional Bus, U1-VMBusCon,
3	U90/ 32, YIN-6	U91/ 32, YIN-6, Bidirectional Bus, U1-VMBusCon,
4	U90/ 31, YIN-5	U91/ 31, YIN-5, Bidirectional Bus, U1-VMBusCon,
5	U90/ 30, YIN-4	U91/ 30, YIN-4, Bidirectional Bus, U1-VMBusCon,
6	U90/ 25, YIN-3	U91/ 25, YIN-3, Bidirectional Bus, U1-VMBusCon,
7	U90/ 24, YIN-2	U91/ 24, YIN-2, Bidirectional Bus, U1-VMBusCon,
8	U90/ 23, YIN-1	U91/ 23, YIN-2, Bidirectional Bus, U1-VMBusCon,
9	U90/ 22, YIN-0	U91/ 22, YIN-0, Bidirectional Bus, U1-VMBusCon,
10	GND	GND
11	U90/ 20, UVIN-7, Bidirectional Bus, U2-VMBusCon,	U91/ 20, UVIN-7, Bidirectional Bus, U3-VMBusCon,
12	U90/ 19, UVIN-6, Bidirectional Bus, U2-VMBusCon,	U91/ 19, UVIN-6, Bidirectional Bus, U3-VMBusCon,
13	U90/ 18, UVIN-5, Bidirectional Bus, U2-VMBusCon,	U91/ 18, UVIN-5, Bidirectional Bus, U3-VMBusCon,
14	U90/ 17, UVIN-4, Bidirectional Bus, U2-VMBusCon,	U91/ 17, UVIN-4, Bidirectional Bus, U3-VMBusCon,
15	U90/ 13, UVIN-3, Bidirectional Bus, U2-VMBusCon,	U91/ 13, UVIN-3, Bidirectional Bus, U3-VMBusCon,
16	U90/ 12, UVIN-2, Bidirectional Bus, U2-VMBusCon,	U91/ 12, UVIN-2, Bidirectional Bus, U3-VMBusCon,
17	U90/ 11, UVIN-1, Bidirectional Bus, U2-VMBusCon,	U91/ 11, UVIN-1, Bidirectional Bus, U3-VMBusCon,
18	U90/ 10, UVIN-0, Bidirectional Bus, U2-VMBusCon,	U91/ 10, UVIN-0, Bidirectional Bus, U3-VMBusCon,
19	---	---
20	---	---
21	---	---
22	---	---
23	---	---
24	---	---
25	---	---
26	U2/ 1, U4/ 1, T/ R, Bus switch A to B, B to A	U1/ 1, U3/ 1, T/ R, Bus switch A to B, B to A
27	---	---
28	---	---
29	---	---
30	---	---
31	---	---
32	---	---
33	U77/ 24, PD3-0	Bidirectional Bus, U4-VMBusCon,
34	U77/ 25, PD3-1	Bidirectional Bus, U4-VMBusCon,
35	U77/ 26, PD3-2	Bidirectional Bus, U4-VMBusCon,
36	U77/ 27, PD3-3	Bidirectional Bus, U4-VMBusCon,
37	U77/ 28, PD3-4	Bidirectional Bus, U4-VMBusCon,
38	U77/ 29, PD3-5	Bidirectional Bus, U4-VMBusCon,
38	U77/ 30, PD3-6	Bidirectional Bus, U4-VMBusCon,
40	U77/ 31, PD3-7	Bidirectional Bus, U4-VMBusCon,
41	+5V	+5V
42	U77/ 19, PD2-0	U77/ 4, PD2-0
43	U77/ 18, PD2-1	U77/ 5, PD2-1
44	U77/ 17, PD2-2	U77/ 6, PD2-2
45	U77/ 16, PD2-3	U77/ 7, PD2-3
46	U77/ 15, PD2-4	U77/ 8, PD2-4
47	U77/ 14, PD2-5	U77/ 9, PD2-5
48	U77/ 13, PD2-6	U77/ 10, PD2-6
49	U77/ 12, PD2-7	U77/ 11, PD2-7
50	GND	GND

Active Bridge Board - Pinning
Nr.	Pin VM - DDPR Board	Pin VM - DDPR Board	Pin VM - YUV Interface	Pin VM - YUV Interface	Pin VM - Mainboard	Pin VM - Mainboard
1	1, 10, 50, GND	1, 10, 50, GND	1, 10, 50, GND	1, 10, 50, GND	1, 10, 50, GND	1, 10, 50, GND
2	2	2, U1/ 2	2	2, U1/ 2	2	2, U1/ 18
3	3	3, U1/ 3	3	3, U1/ 3	3	3, U1/ 17
4	4	4, U1/ 4	4	4, U1/ 4	4	4, U1/ 16
5	5	5, U1/ 5	5	5, U1/ 5	5	5, U1/ 15
6	6	6, U1/ 6	6	6, U1/ 6	6	6, U1/ 14
7	7	7, U1/ 7	7	7, U1/ 7	7	7, U1/ 13
8	8	8, U1/ 8	8	8, U1/ 8	8	8, U1/ 12
9	9	9, U1/ 9	9	9, U1/ 9	9	9, U1/ 11
10	10, 1, 50, GND	10, 1, 50, GND	10, 1, 50, GND	10, 1, 50, GND	10, 1, 50, GND	10, 1, 50, GND
11	11, U2/ 2	11, U3/ 2	11, U2/ 2	11, U3/ 2	11, U2/ 18	11, U3/ 18
12	12, U2/ 3	12, U3/ 3	12, U2/ 3	12, U3/ 3	12, U2/ 17	12, U3/ 17
13	13, U2/ 4	13, U3/ 4	13, U2/ 4	13, U3/ 4	13, U2/ 16	13, U3/ 16
14	14, U2/ 5	14, U3/ 5	14, U2/ 5	14, U3/ 5	14, U2/ 15	14, U3/ 15
15	15, U2/ 6	15, U3/ 6	15, U2/ 6	15, U3/ 6	15, U2/ 14	15, U3/ 14
16	16, U2/ 7	16, U3/ 7	16, U2/ 7	16, U3/ 7	16, U2/ 13	16, U3/ 13
17	17, U2/ 8	17, U3/ 8	17, U2/ 8	17, U3/ 8	17, U2/ 12	17, U3/ 12
18	18, U2/ 9	18, U3/ 9	18, U2/ 9	18, U3/ 9	18, U2/ 11	18, U3/ 11
19	19	19	19	19	19	19
20	20	20	20	20	20	20
21	21	21	21	21	21	21
22	22	22	22	22	22	22
23	23	23	23	23	23	23
24	24	24	24	24	24	24
25	25	25	25	25	25	25
26	26, U2/ 1, U4/ 1, T/ R	26, U2/ 1, U4/ 1, T/ R	26, U2/ 1, U4/ 1, T/ R	26, U2/ 1, U4/ 1, T/ R	26, U2/ 1, U4/ 1, T/ R	26, U2/ 1, U4/ 1, T/ R
27	27	27	27	27	27	27
28	28	28	28	28	28	28
29	29	29	29	29	29	29
30	30	30	30	30	30	30
31	31	31	31	31	31	31
32	32	32	32	32	32	32
33	33	33, U4/ 2	33	33, U4/ 2	33	33, U4/ 18
34	34	33, U4/ 3	34	34, U4/ 3	34	34, U4/ 17
35	35	33, U4/ 4	35	35, U4/ 4	35	35, U4/ 16
36	36	33, U4/ 5	36	36, U4/ 5	36	36, U4/ 15
37	36	33, U4/ 6	37	37, U4/ 6	37	37, U4/ 14
38	38	33, U4/ 7	38	38, U4/ 7	38	38, U4/ 13
39	39	33, U4/ 8	39	39, U4/ 8	39	39, U4/ 12
40	40	33, U4/ 9	40	40, U4/ 9	40	40, U4/ 11
41	41, +5V	41, +5V	41, +5V	41, +5V	41, +5V	41, +5V
42	42	42	42	42	42	42
43	43	43	43	43	43	43
44	44	44	44	44	44	44
45	45	45	45	45	45	45
46	46	46	46	46	46	46
47	47	47	47	47	47	47
48	48	48	48	48	48	48
49	49	49	49	49	49	49
50	50, 10, 1, GND	50, 10, 1, GND U1/ 19, U2/ 19, OE U3/ 19, U4/ 19, OE	50, 10, 1, GND	50, 10, 1, GND C1, C2, C3, C4	50, 10, 1, GND	50, 10, 1, GND U1/ 10, U2/ 10, OE U3/ 10, U4/ 10, OE
U1, 2, 3 + 4 74LS245, SMD Gehäuse
